Frigel Introduces ModularChiller 3FX Water Cooled Central Chiller Line

Ranging from 25 to 139 tons each, the modular and energy efficient 3FX product line allows for easy expansion and provides automatic free cooling as part of an integrated closed-loop process cooling system.

EAST DUNDEE, ILL – February 14, 2019

Frigel, the world market leader in intelligent process cooling, has announced its ModularChiller line of central chillers now includes its new family of modular and highly energy efficient 3FX water-cooled chillers ranging from 25 to 139 tons each.

Designed for use with Frigel’s internationally patented Ecodry 3DK central adiabatic dry-cooler systems and offering engineered, automatic free-cooling capability, 3FX chillers are a key component of a digitally controlled, integrated closed-loop intelligent cooling system engineered to save energy and deliver reliable performance.

Each complete modular system offers an unmatched level of flexibility that gives industrial users the ability to easily expand and cost-effectively meet their evolving process cooling needs, or fulfill the need for system redundancy.

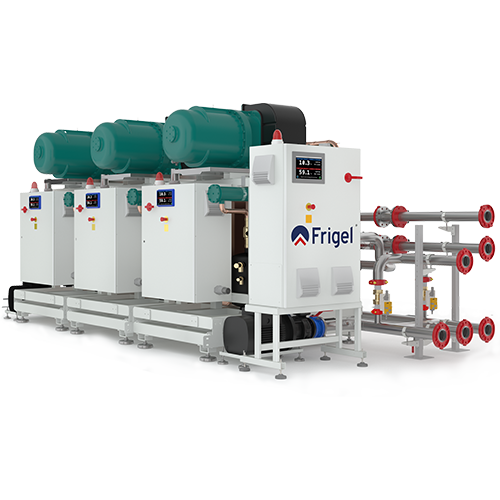

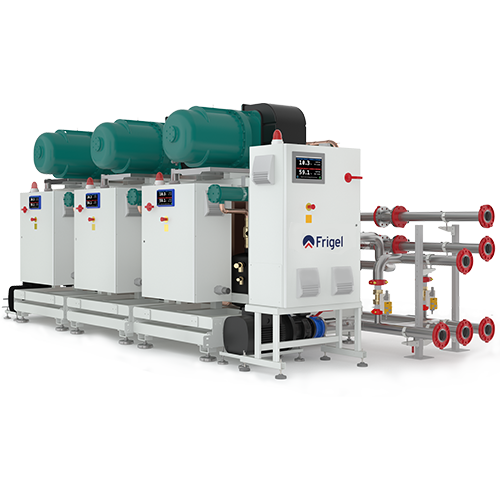

These units are design specifically to build "integrated systems," either in parallel configuration (Modular Refrigeration Systems) or in series arrangement (MultiStage Refrigeration Systems).

MultiStage

Frigel’s 3FX chillers are available in 12 models to meet the demands of a wide range of process cooling applications, while providing industry leading energy efficiency ratios (EERs) in all working conditions.

Seven models are engineered with high-efficiency Bitzer screw compressors offering 41 to 139 tons of cooling per chiller and allowing for step-less capacity modulation from 25 to 100 percent. Five models feature twin tandem scroll compressors providing 25 to 65 tons of cooling capacity per unit.

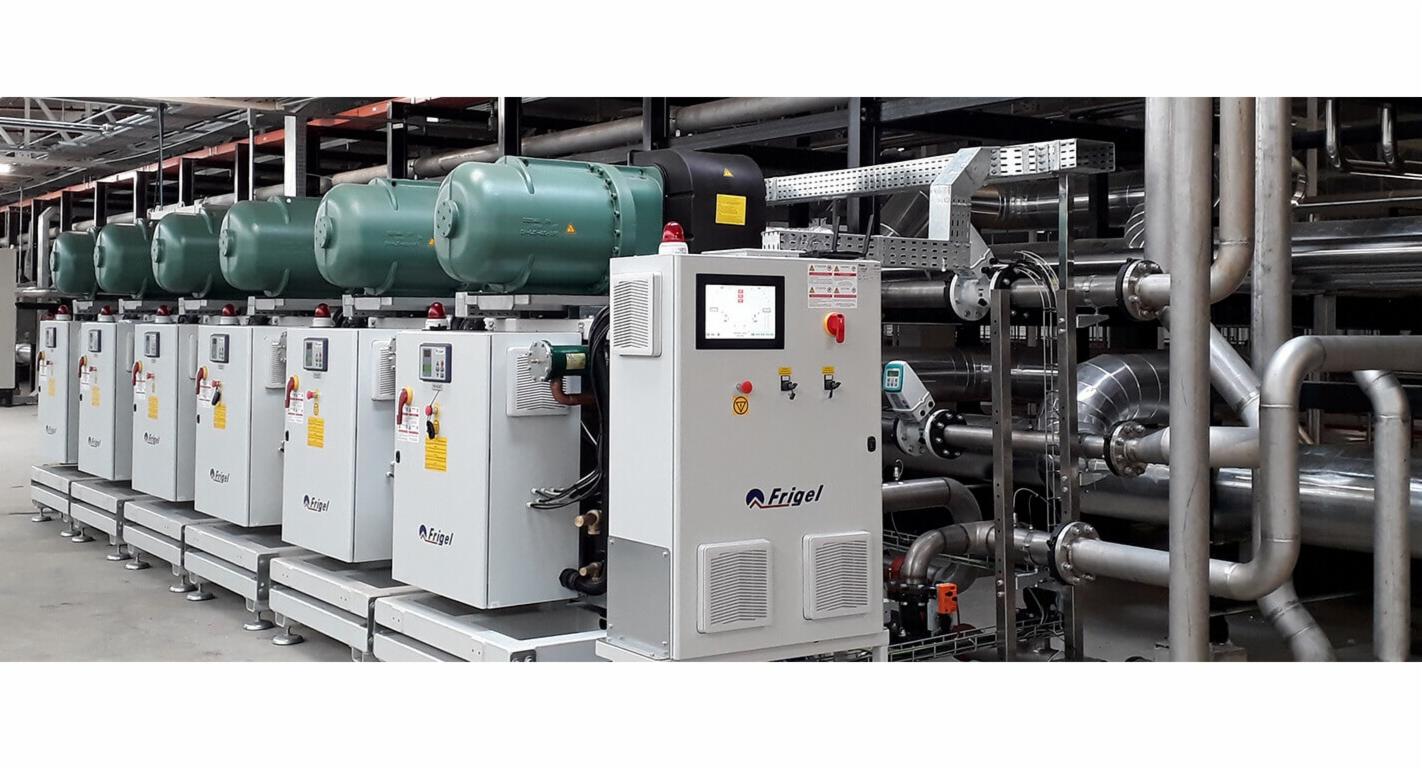

Each digitally controlled compact chiller has a minimal footprint and is engineered as a self-contained and complete package, consisting of a single-refrigeration circuit, rotary compressor(s), evaporator and condenser. The chillers can be configured to provide up to 850 tons of cooling capacity.

Frigel offers the 3FX chillers as part of an integrated system engineered to cost-effectively and reliably deliver process cooling based on each customer’s unique operation and process cooling needs. In addition to the 3FX chiller, an integrated system includes an Ecodry adiabatic cooler and Aquagel pumping, reservoir and filtration package – all of which are modular units designed to minimize installation costs and provide for ease of expansion.

The Frigel 3PR Intelligent Control System automatically monitors and adjusts the complete system to ensure optimum performance based on a wide range of operating parameters. The controller, in combination with a central 3-way motorized modulating valve, automatically shuts down the 3FX chillers and lets the Ecodry unit deliver process water at the proper temperature where needed via ambient air flow – and in so doing — achieve free cooling and energy savings of up to 80 percent, conditions permitting.

The 3PR controller automatically manages system capacity to ensure energy optimization. The controller also performs self-diagnostics and provides remote control capability to help operators monitor system performance at all times, while further ensuring peak performance and maximum uptime.
