HYBRECO HSM

Modular Adiabatic Thermal Management - HSM

All-In-One Adiabatic Solution with Plug&Play Design

Beyond traditional adiabatic cooling technology, HYBRECO HSM represents the latest evolution of our Ecodry systems. Separate pumping stations are no longer necessary, design costs are very low, and the on-site labor required to connect components is minimized. HYBRECO is the revolutionary modular adiabatic thermal management system, designed to improve a company’s profitability, efficiency, and sustainability.

  • Reduced engineering work: Each module comes complete with process pumps, sensors, a water filter, and integrated control systems
  • Lower installation cost: The true Plug&Play design minimizes piping, labour and commissioning time
  • No technical room required, save valuable indoor space (thanks to an all-in-one solution).

Visit the Circular Thermal Management mini-site and discover all its benefits for your company and your community.

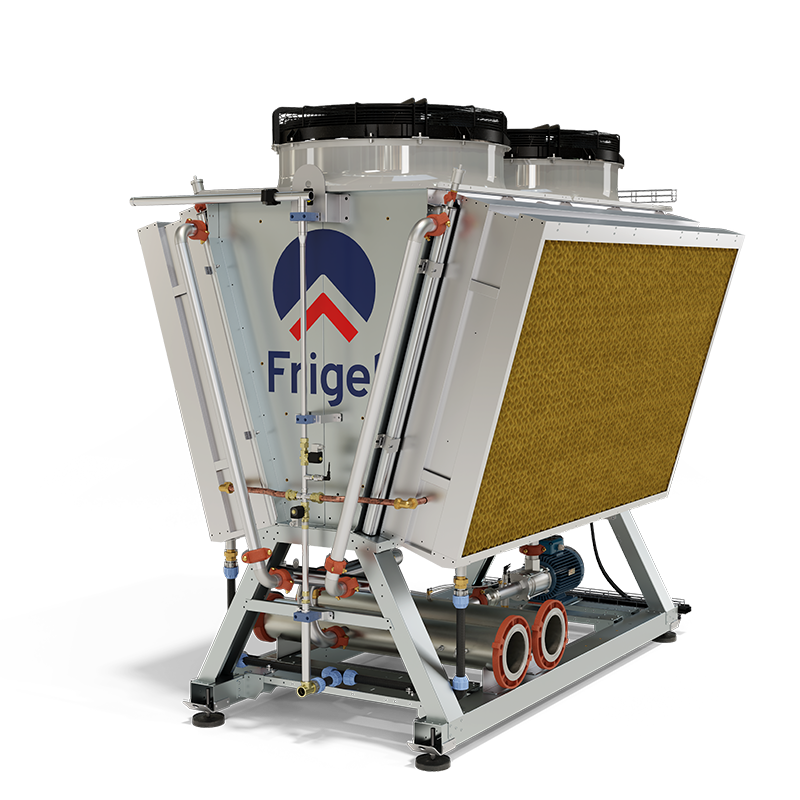

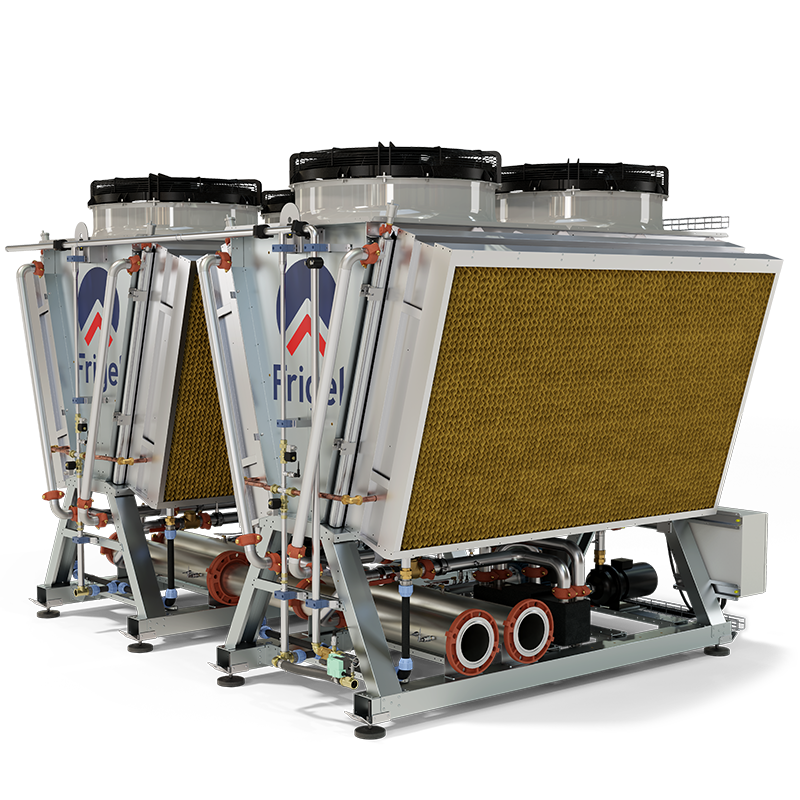

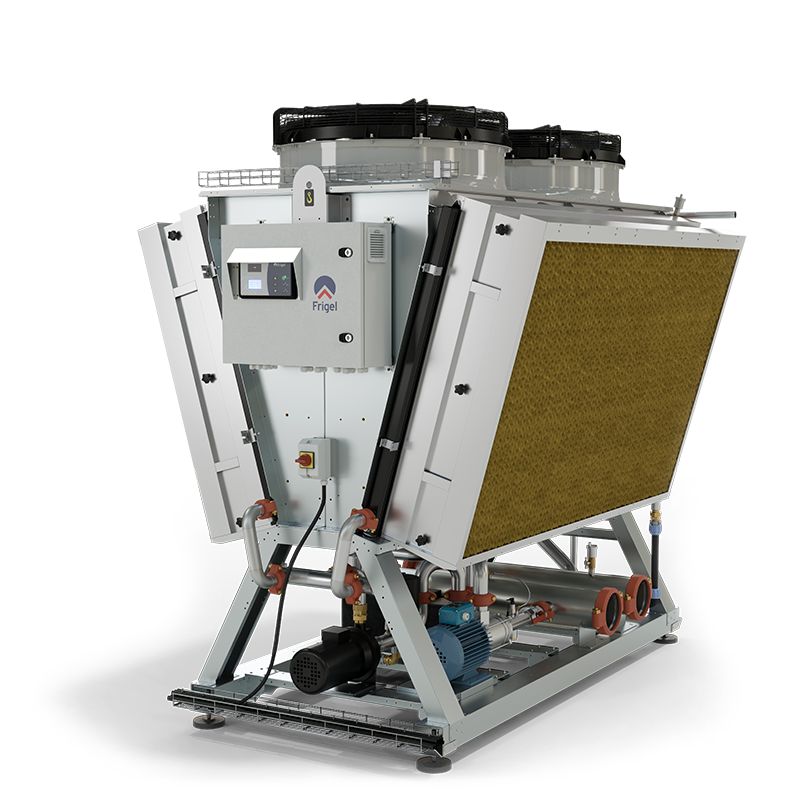

Frigel Hybreco HSM 01 Frigel Hybreco HSM 02 Frigel Hybreco HSM 03 Frigel Hybreco HSM unlimited parallel expansion
hot spot
hot spot
hot spot
hot spot
hot spot
hot spot
hot spot
hot spot
hot spot
left
right
Advantages Features Watch video Fields of application Other solutions FAQ

Advantages

All-In-One for a better performance

  • All-In-One Solution, drastically reduces system CAPEX (lower engineering, removes most external piping, accessories and labour, significantly lowering total investment per kW of cooling capacity available).

  • No technical room required, save valuable indoor space thanks to an all-in-one solution.

  • More Capacity in less space, micro-channel coils deliver 15-20% higher capacity per fan than standard equivalent lines.

  • Reduced annual energy and water consumption, outperforming standard adiabatic benchmarks.

  • Uninterrupted Operation: eliminating Operational Single Points of Failure through active N+1 redundancy guarantees uninterrupted cooling performance.

  • Off-the-shelf availability: engineered as a standardized, competitively priced product, Hybreco reduces complexity and enables quick, ready-to-ship deployment.

Features

Total Modularity

  • All-In-One Solution with its process pumps, sensors, water strainer and controls on board (2 fans per module).

  • Plug&Play design delivers lower Lead times, easy and total scalability (up to 10 modules, 20 fans) with unlimited parallel expansion.

  • Functionality: Adiabatic or Dry.

  • Water Circuit: Direct (pressurized) or indirect (brazed-plate heat exchanger + recirculation pump). On-board VFD process and recirculation pump (if present). Y-type water strainer.

  • Heat Exchanger: All-aluminum micro-channel coils.

  • Intelligent control logics: integrated water & energy saving logic drastically reduces OPEX

  • Freeze and corrosion protection: the indirect configuration features a factory-charged, sealed water- antifreeze circuit that protects the coils from freezing and corrosion, while keeping the main process loop completely glycol-free.

  • Time saving and easy maintenance: modular component layout, quick-connect hydraulic fittings, and front-access service points streamline routine inspections and minimize the time to repair.

  • Connections: 6″ PN10 water IN/OUT.

  • Transport: Fits standard 40 ft / high-cube containers.

Modular Adiabatic Thermal Management System

Watch video

Cover video modular thermal management systems Play

Fields of application

Modular Adiabatic Thermal Management - HSM for your industry

Other solutions

Products that can help you.

FAQ on Modular Thermal Management System

What is the Frigel Hybreco HSM modular adiabatic cooling system and how does it work?

The Frigel Hybreco HSM is a next-generation modular adiabatic cooling system engineered for high-efficiency thermal dissipation in industrial processes. Unlike conventional cooling setups, the Hybreco HSM combines dry-mode operation with intelligent hybrid/adiabatic technology. When ambient temperatures rise, the system atomizes a micro-mist of water to precool the incoming air before it reaches the heat exchanger coils. Its modular design allows manufacturers to scale cooling capacity precisely according to production demands, ensuring operational continuity, flexibility, and superior energy efficiency.

What are the key advantages of the Frigel Hybreco HSM compared to traditional evaporative cooling towers?

Compared to traditional evaporative cooling towers, the Frigel Hybreco HSM delivers three major competitive advantages:

  1. Extreme Water Conservation: Water is utilized only during peak ambient temperature conditions, reducing overall water consumption by up to 95%.
  2. Enhanced Safety and Zero Legionella Risk: Operating as a closed-loop system that runs dry for most of the year without stagnant water, it eliminates the risk of Legionella bacteria growth and drastically reduces the need for continuous chemical treatments.
  3. Reduced Operating Costs (OPEX) and Low Maintenance: By preventing scaling and fouling on coil surfaces, the system maintains constant heat transfer efficiency over time while significantly lowering routine maintenance overheads.

How does the Frigel Hybreco HSM technology achieve water and energy savings?

The Hybreco HSM optimizes resource consumption through an advanced digital control system paired with high-efficiency EC fan technology. The system continuously monitors ambient conditions and process heat load, automatically adjusting fan speeds and modulating water atomization in the adiabatic chamber. Operating in Dry Mode for the majority of the year, it consumes electrical and water resources strictly proportional to real-time demand, significantly reducing the facility's overall carbon footprint.

How scalable and configurable is the Hybreco HSM modular system for industrial plants?

Designed as a native Plug & Play modular solution, the Frigel Hybreco HSM allows seamless and cost-effective expansion as production lines grow. Individual Hybreco HSM modules connect easily in parallel using dedicated headers, offering a compact footprint, minimal clearance distances between units, and robust mechanical/electrical redundancy to guarantee uninterrupted plant operation during maintenance phases. The cluster consists of 1 to 10 modules (20 fans), with an unlimited number of clusters in parallel.
