The new Frigel technology that revolutionizes the temperature control method of injection molding technical parts.

Cascade refrigeration systems with water or air cooled condensers.

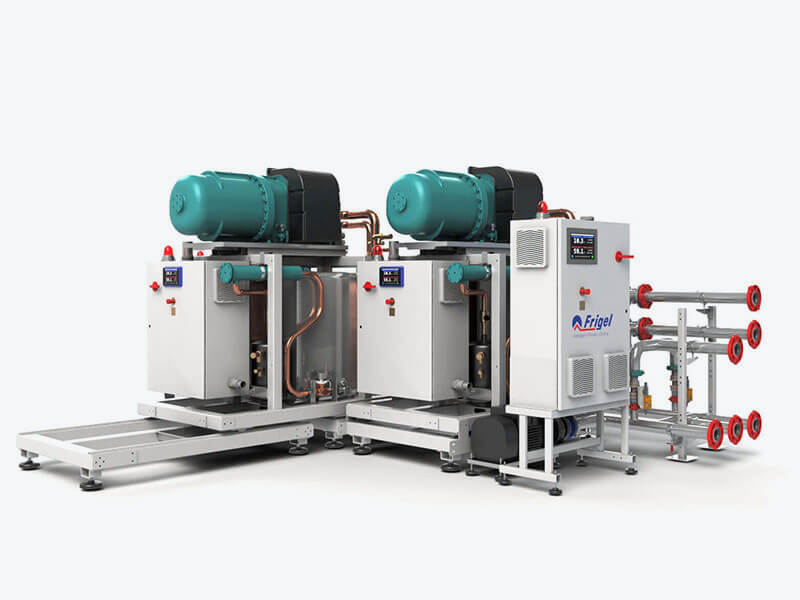

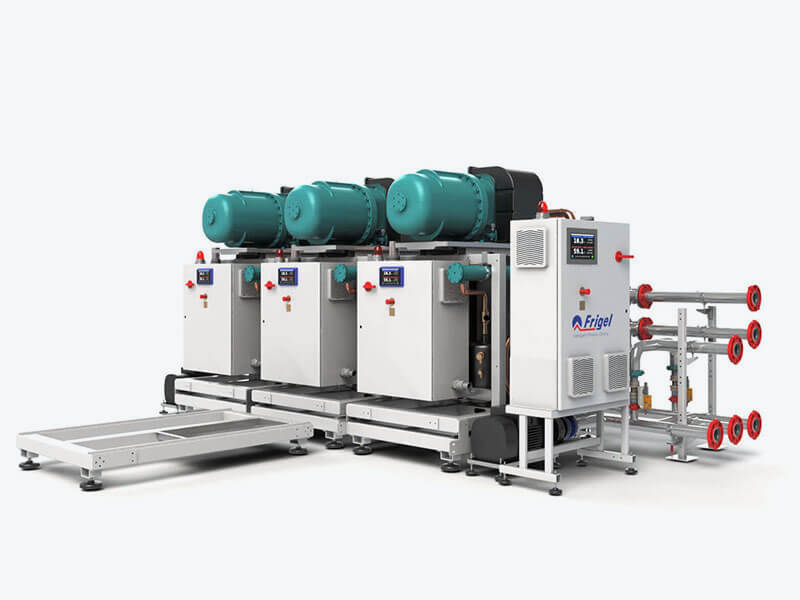

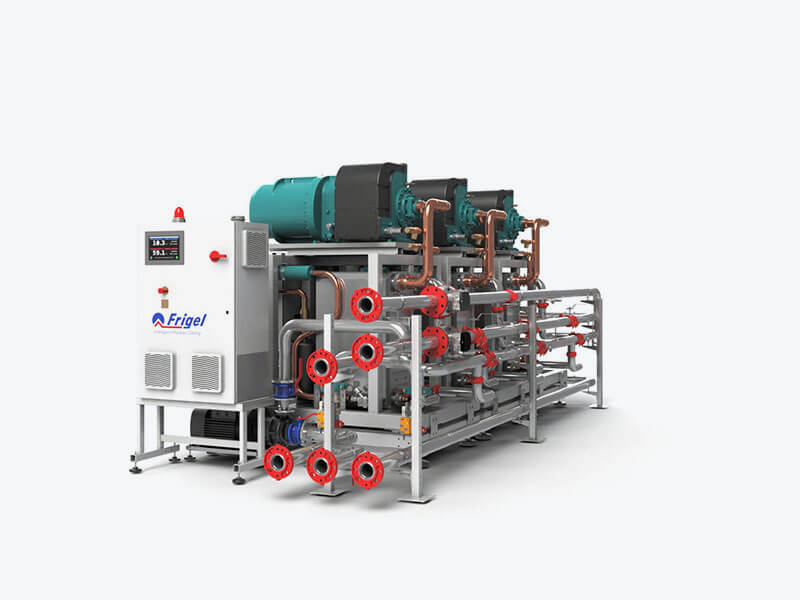

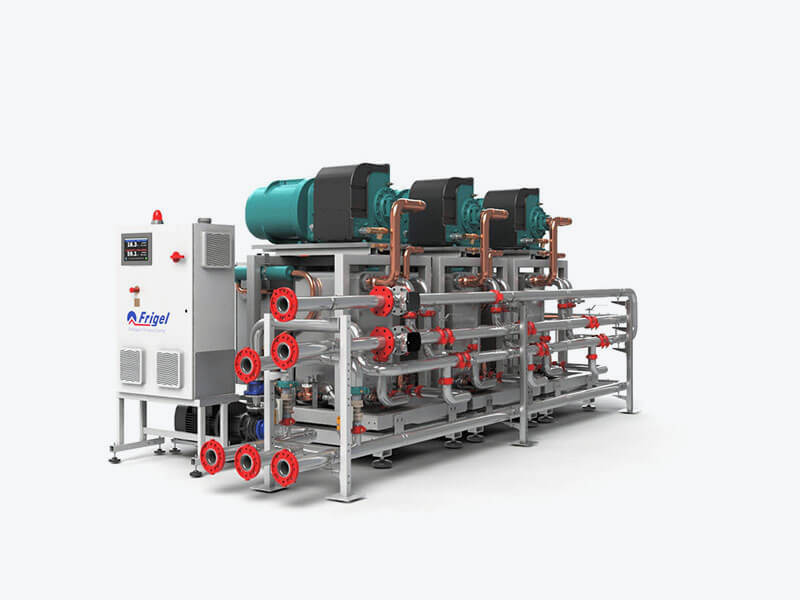

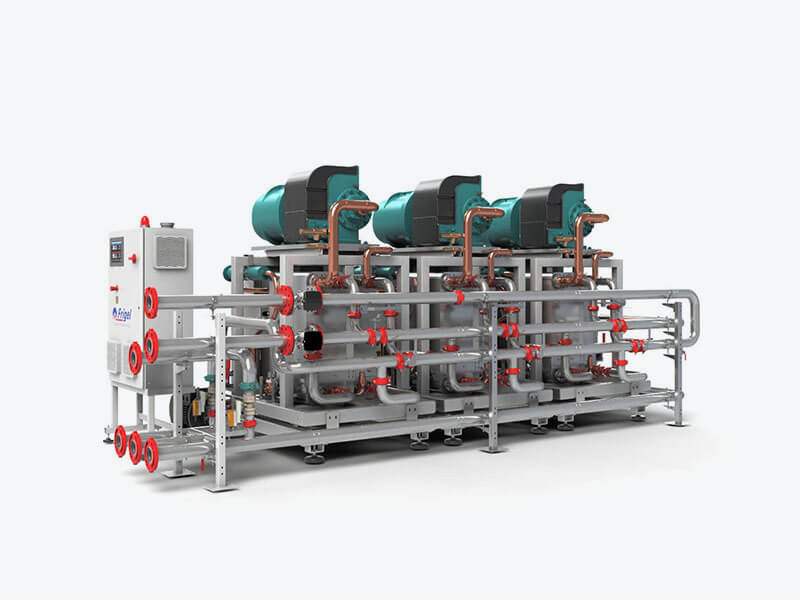

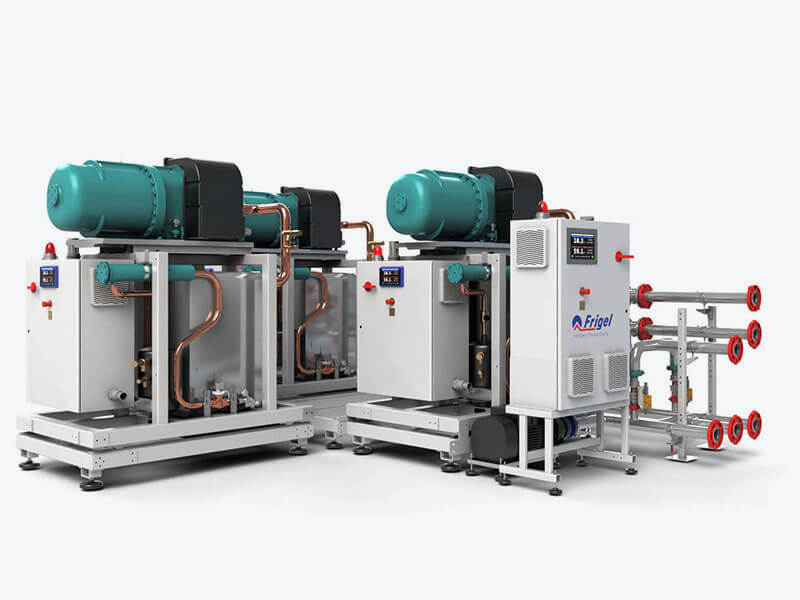

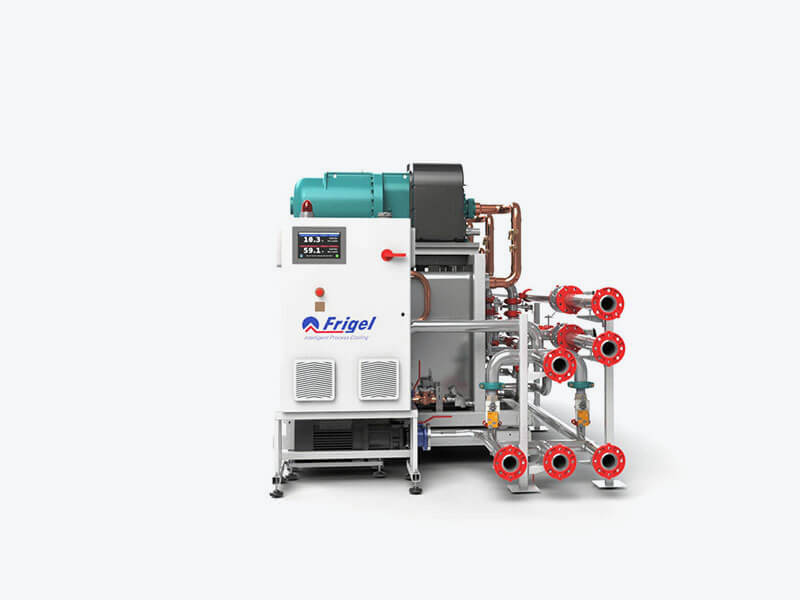

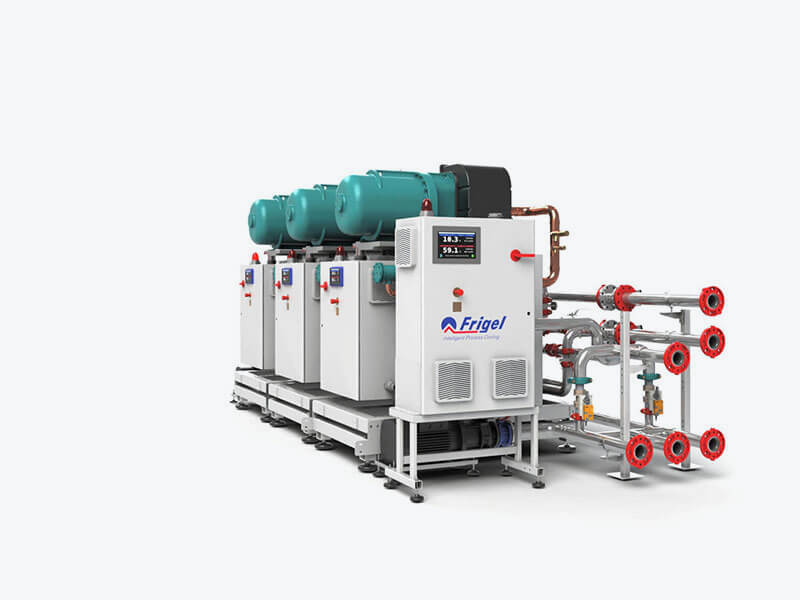

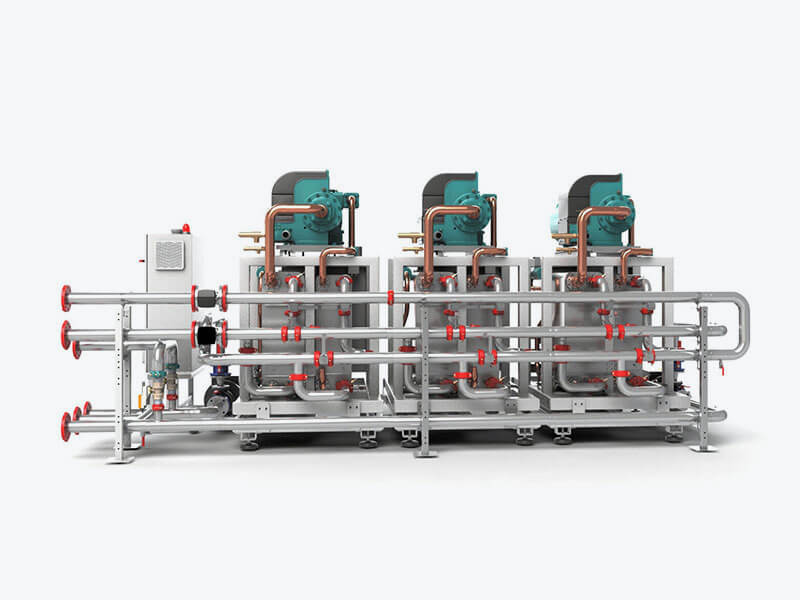

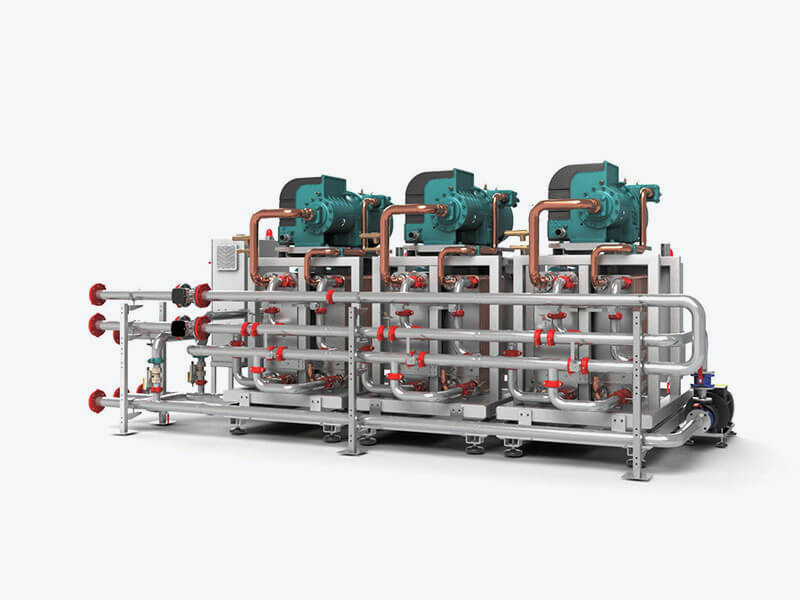

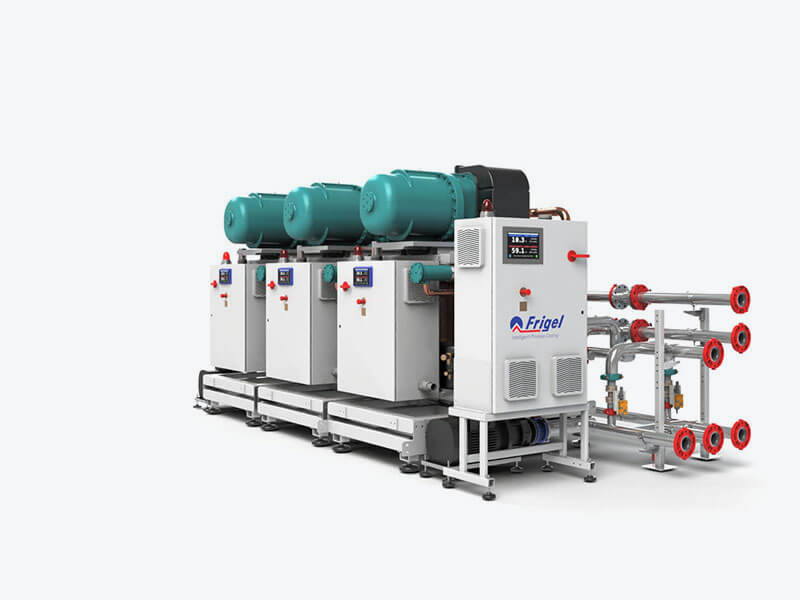

MultiStage is an integrated cascade refrigeration system, with water or air condensation, designed to provide high efficiency cooling conditions to processes with a high temperature drop. It consists of refrigeration modules (Modular Chiller) arranged in series and fully exploits this large temperature differential, allowing the stages to operate with the highest evaporation temperatures and, therefore, with the maximum refrigeration performance (COP/EER). MultiStage can be synchronized digitally with the processing line and automatically managed by it.

Request Information

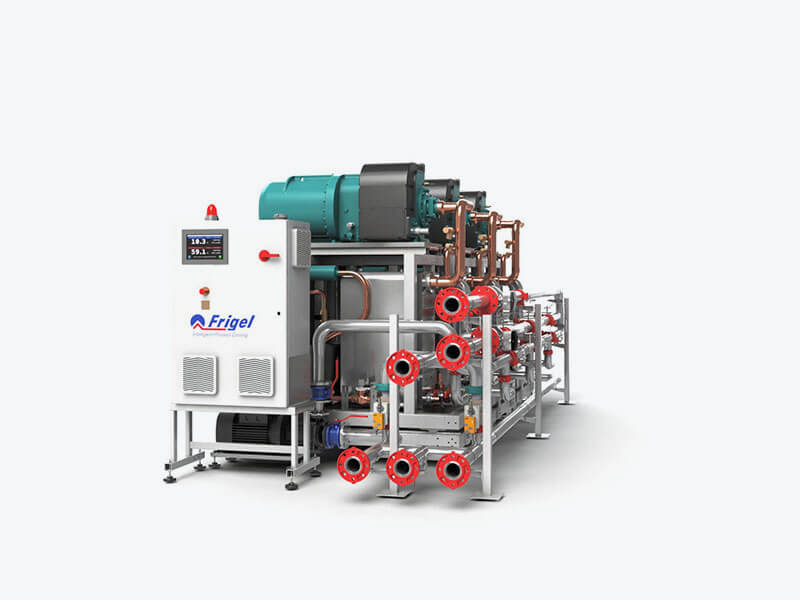

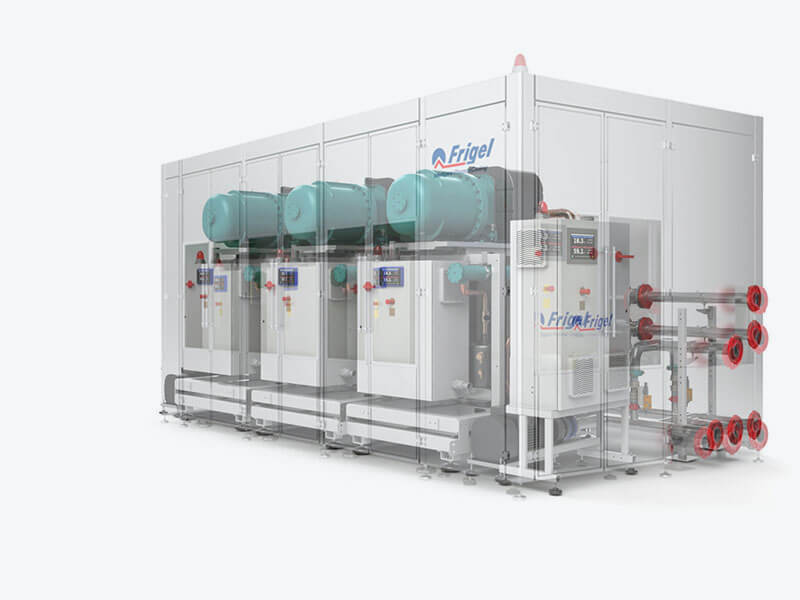

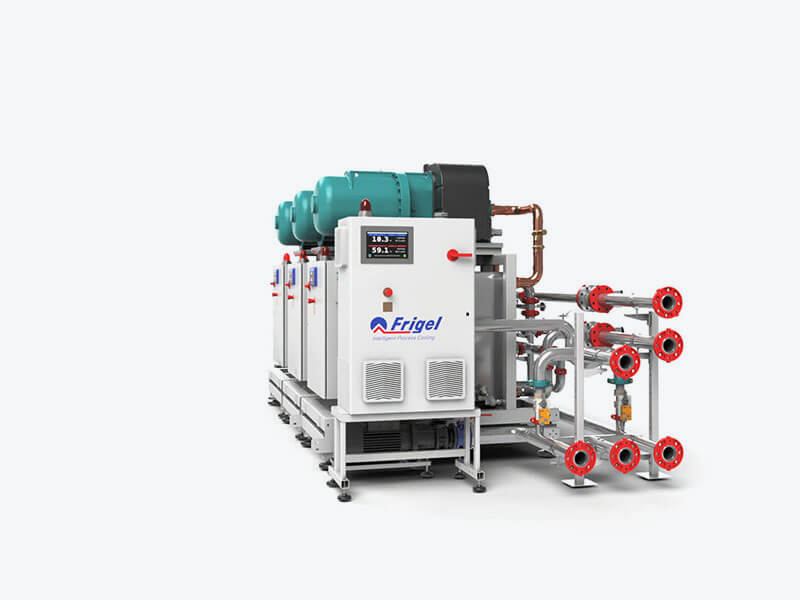

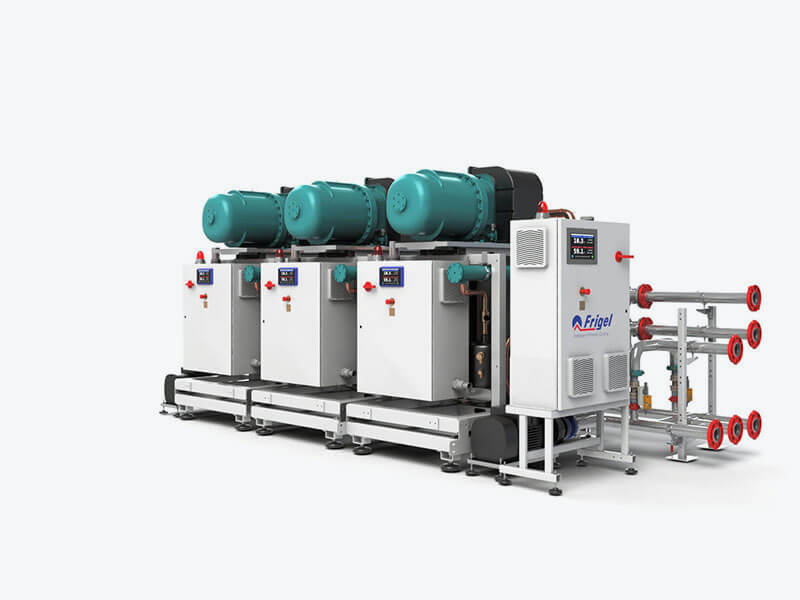

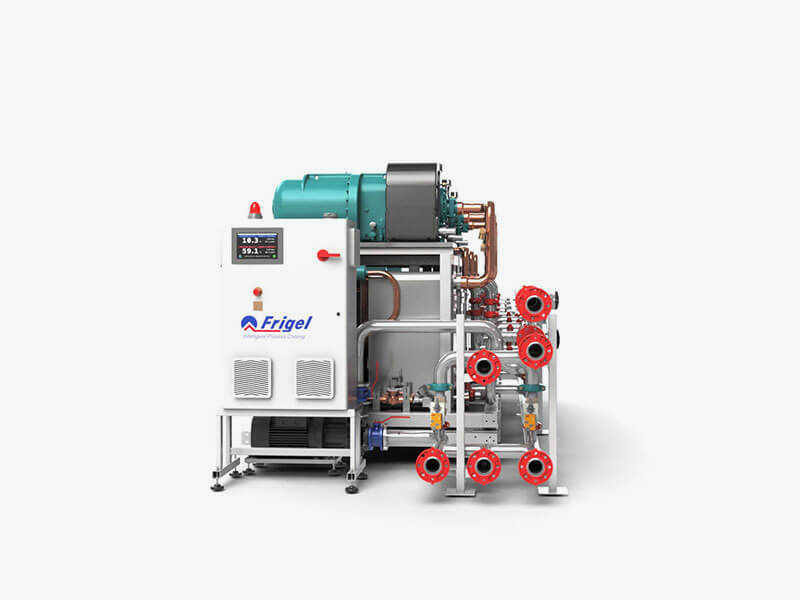

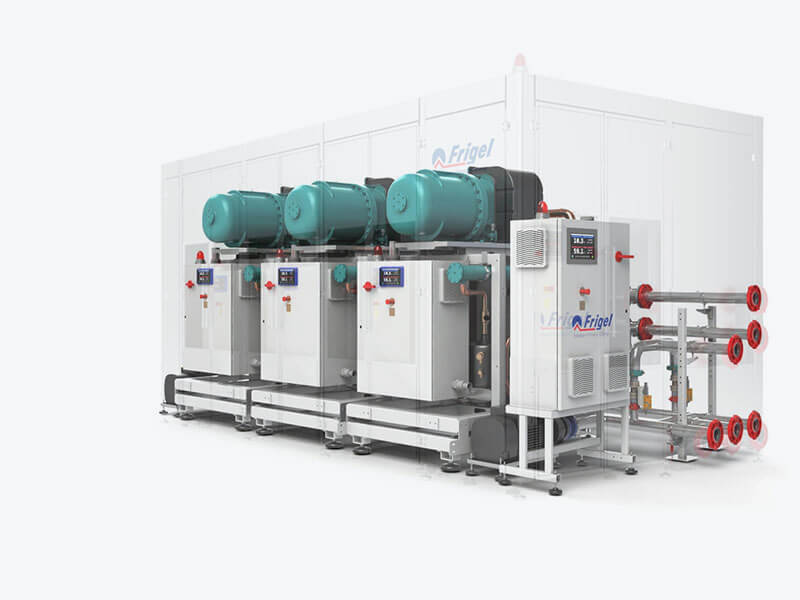

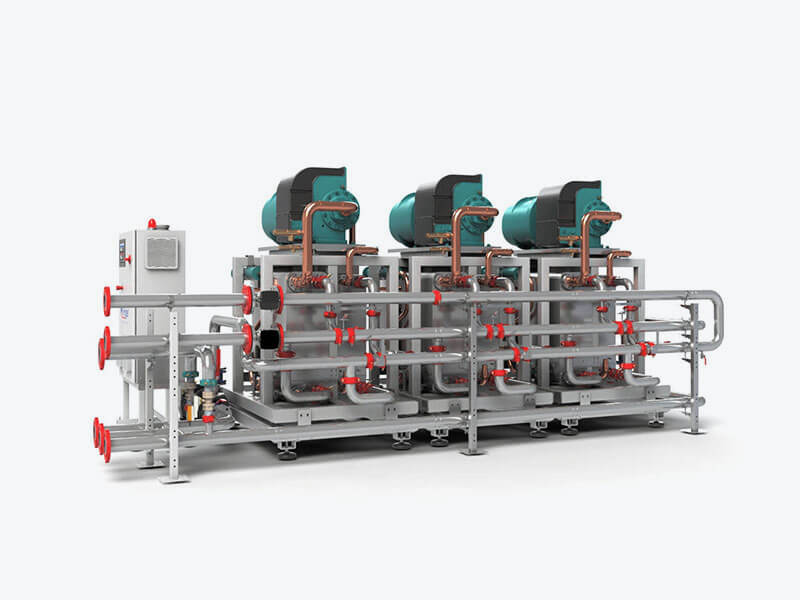

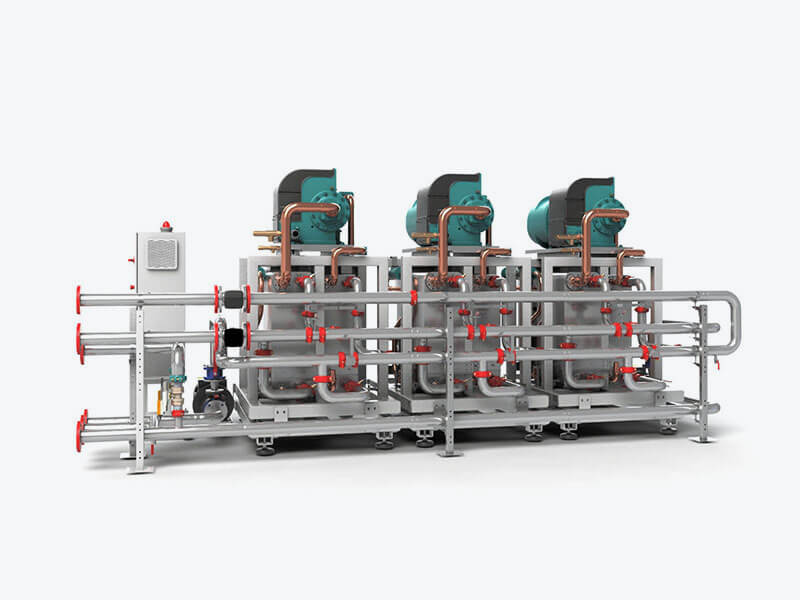

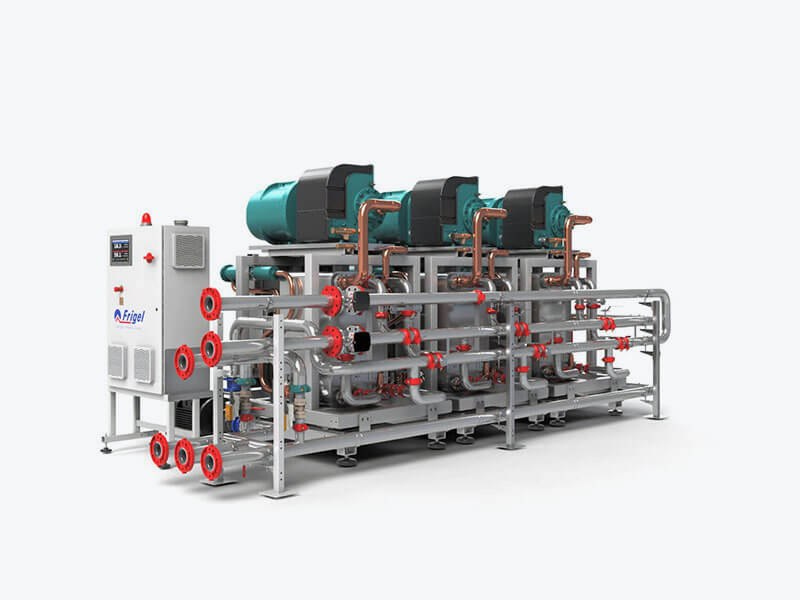

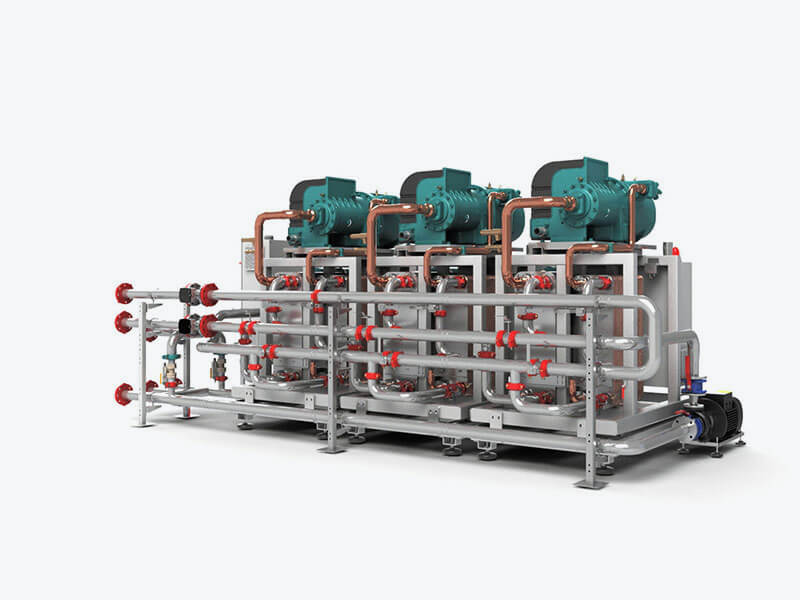

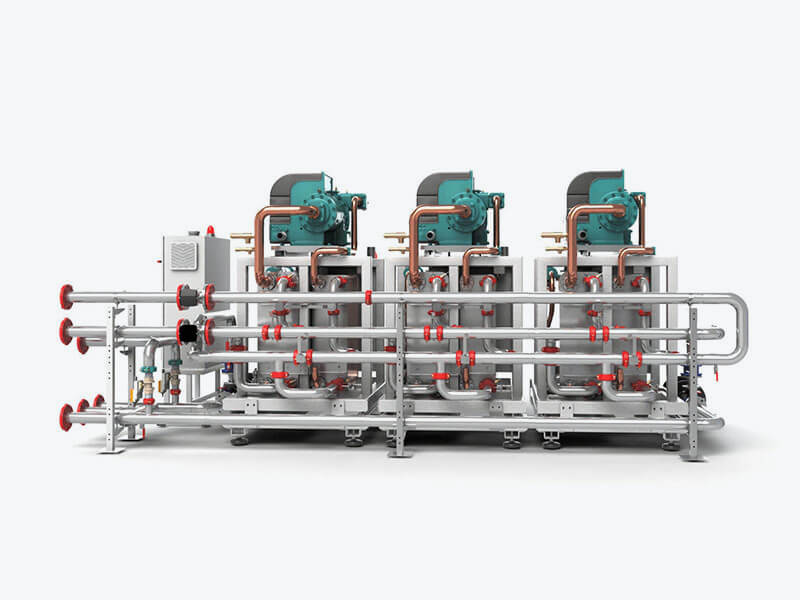

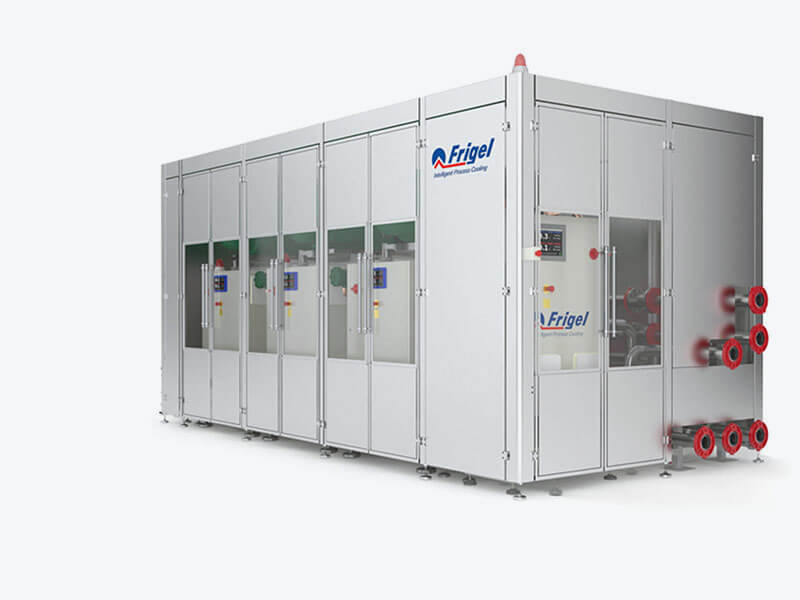

Cascade Refrigeration System

hot spot

hot spot

hot spot

hot spot

left

right

Advantages Features Fields of application Other solutions

Advantages

Unbeatable energy efficiency

Cascade cooling synchronized with the process.
High energy efficiency: the highest EER in all working conditions.
High reliability: units built and tested in the factory.

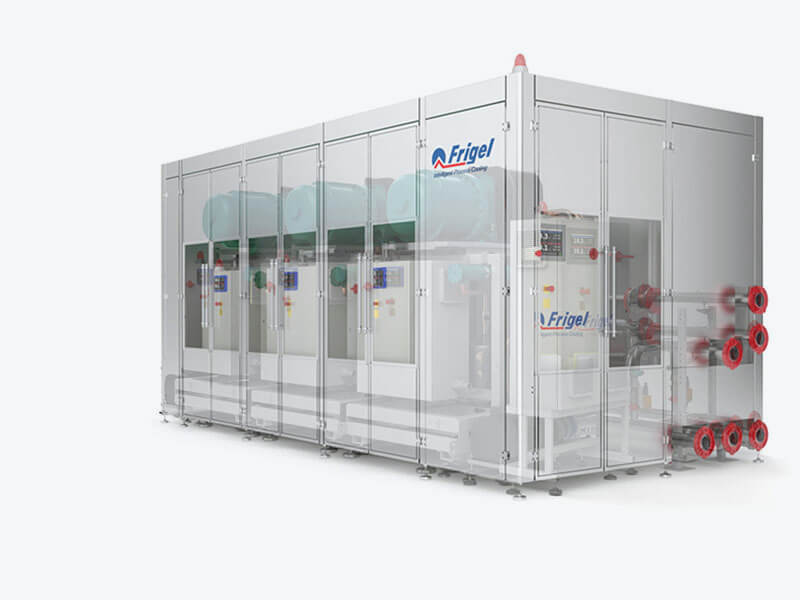

Super compact and reliable, factory tested, plug & play concept.
Easy to install, use, maintain or repair.
Heat recovery if managed as a heat pump. Hot water up to 60 °C (140 ˚F).
Each chiller can be easily repaired or replaced in the event of a failure.

Features

Plug & Play system

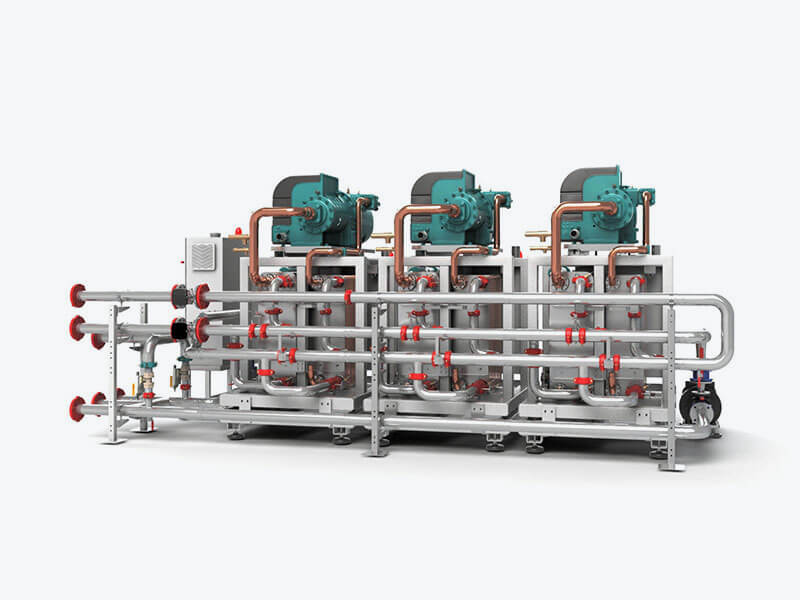

Independent refrigeration modules connected in cascade.
Option with water or air condensation.
Cooling interval: from -5 to 30 °C (23 to 86 ˚F).
Cooling capacity: 300 - 2,500 kW (85 to 711 tons) cooling/heating.

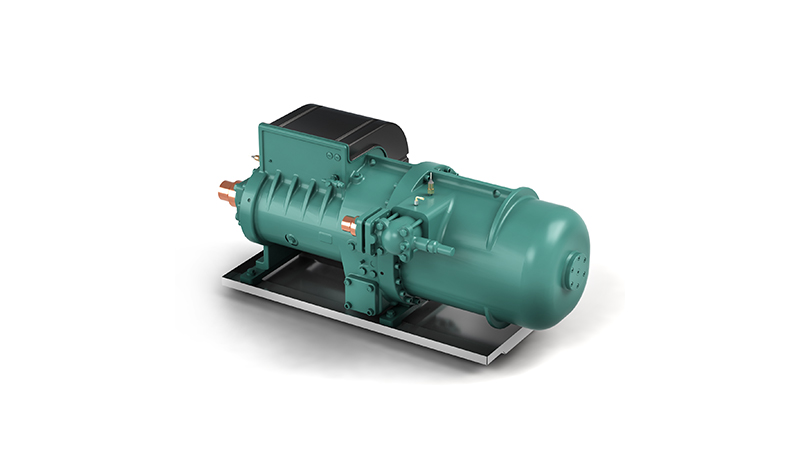

High efficiency inverter driven screw compressors.

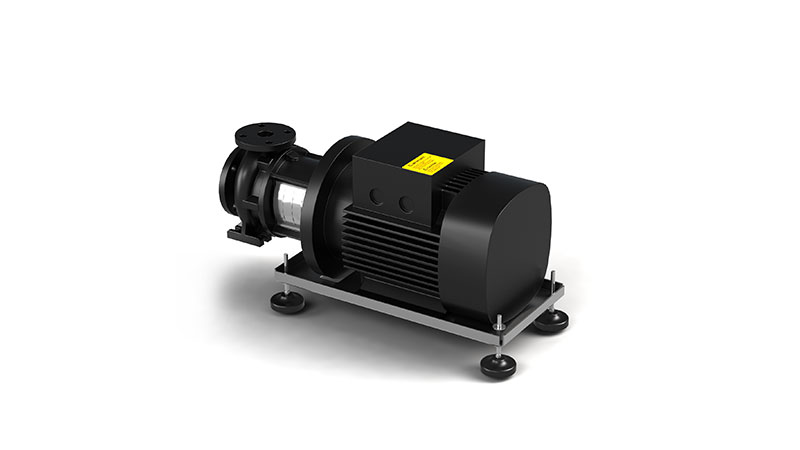

Inverter driven process pumps: from 20 to 150 m3/hr (88 to 660 gpm).
Web/Scada monitoring interfaces, etc.

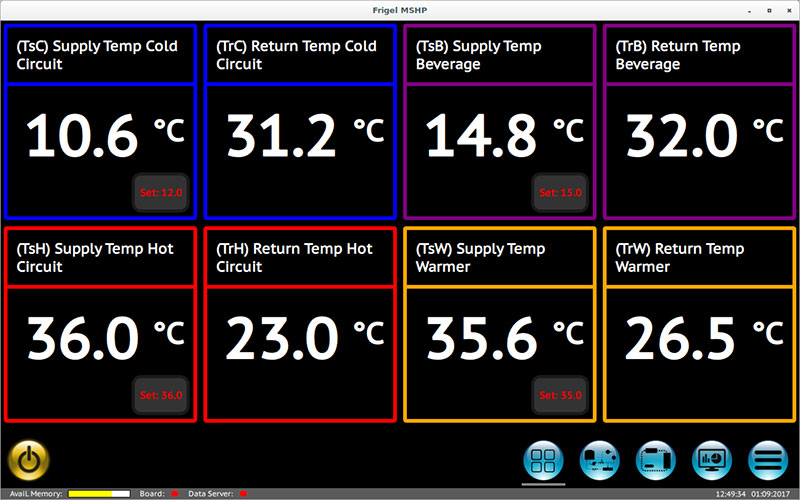

20 " Touch screen interface.

Fields of application

MultiStage for your industry

Refrigerazione macchinari imbottigliamento

Food & Beverage

Process-synchronized Cooling. A paradigm shift in Food & Beverage.

Significant increase in productivity.
Total connectivity and automation.
Perfect repeatability and reduced costs and environmental impact.
Complete absence of ammonia.

Other solutions

Products that can help you.

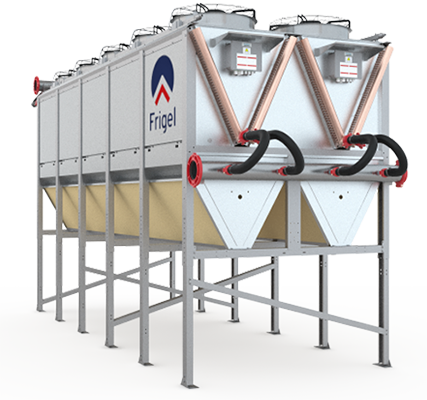

Adiabatic Coolers

Ecodry 3DK

Patented adiabatic cooler: the replacement for evaporative cooling tower

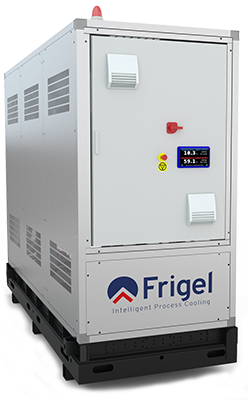

Microgel for industrial process

Microgel for industrial processes

High precision compact water-cooled process chillers.

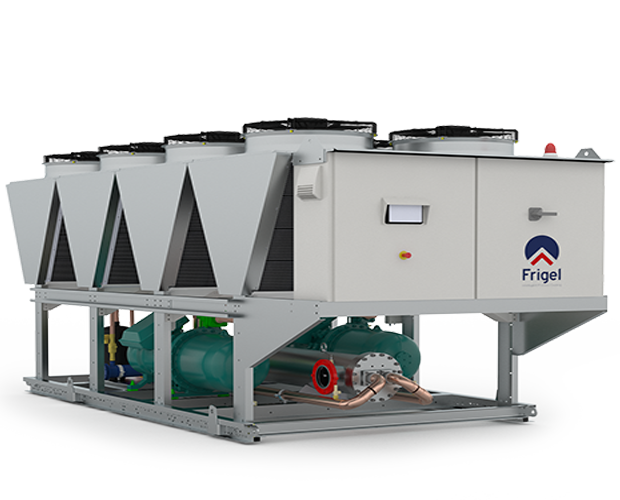

Air Cooled Industrial Chiller

Industrial Chiller Large

Air-cooled industrial chillers from 300 to 1430 kW (85.3 to 406.7 tons) with Screw compressors.

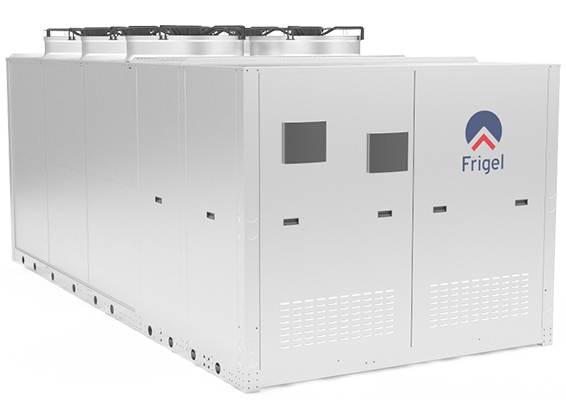

Air Cooled Chiller with Multi Scroll Compressor

Industrial Chiller Medium

Air-cooled industrial chillers from 90 to 580 kW (25.6 to 165 tons) with Multi-Scroll compressors.

Industrial Chiller Small

Air-cooled industrial chillers from 13 to 75 kW (3.7 to 21.3 tons) with Scroll compressors.

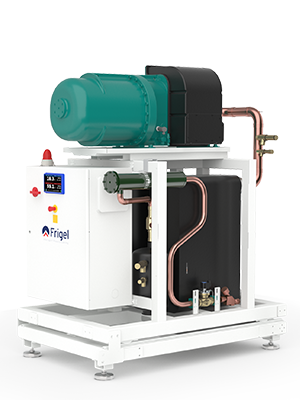

Modular Chiller

Modular Chiller Water cooled

Modular water-cooled chillers from 100 to 600 kW (28.4 to 170.7 tons) with single Multi-Scroll or screw compressor.

3FR industrial chiller remote condenser

Modular Chiller Remote condenser

Modular air-cooled chillers from 200 to 600 kW (56.9 to 170.7 tons), with single screw compressor and remote condenser.

Process Pumping Station

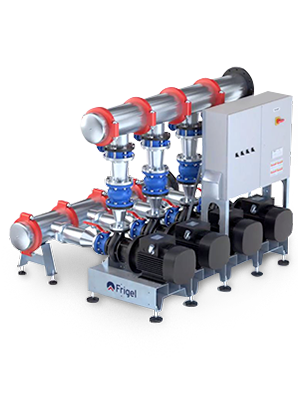

Pumping systems for industrial processes

Modular pumping groups for the process up to 4 pumps.

Recirculation Pumping System

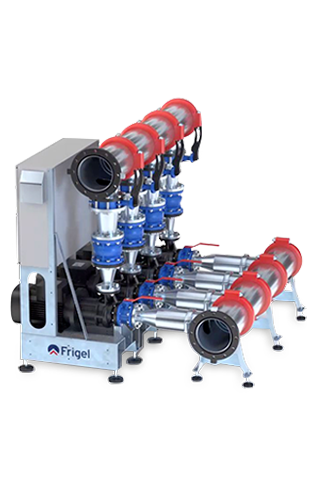

Recirculation pumping groups

Modular pumping groups for recirculation up to 4 pumps.

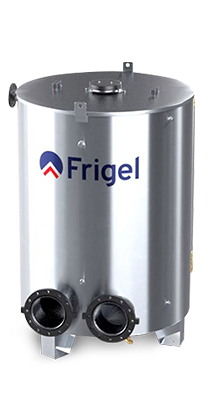

Aquagel Steinless Steel Tank

Stainless steel tanks

Stainless steel tanks from 1,000 to 5,000 liters (260 to 1,300 gallons).

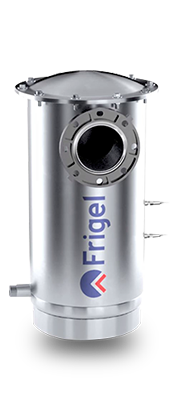

Filtration system
