The Era of Circular Thermal Management

Climatic data modeling allows up to 2,500 hours/year of full or partial compressors shutdown across continental zones, yielding an average annual energy consumption drop of 25-35%.

Remember: Free Cooling is, in essence, the art of taking advantage of what the climate offers for free. When the ambient air temperature is sufficiently lower than that of the required process water, cooling can be achieved without turning on the compressors, which are the most energy-intensive components of any refrigeration system. In free-cooling mode, power consumption is limited to the fans and circulation pumps.

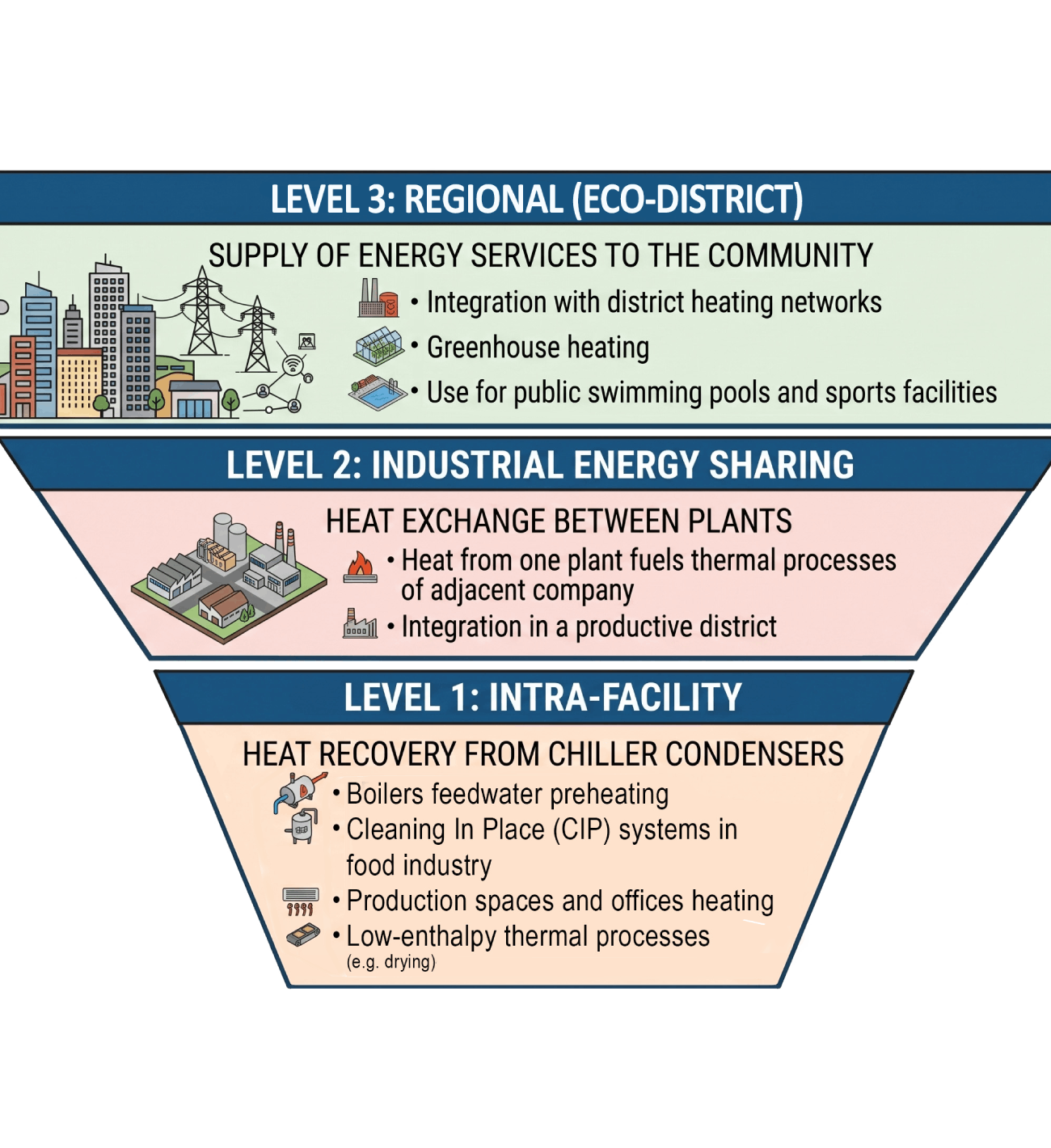

Thermodynamic heat recovery converts waste condensation flows into valuable low-enthalpy thermal assets, theoretically capturing a portion of hundreds of Tera Wh technically recoverable industrial waste heat.

Here, industrial heat ceases to be an internal commodity and becomes an energy service for the entire community (town, region). Experiences in Northern Europe — such as in the metropolitan areas of Stockholm, Helsinki, Copenhagen, and Frankfurt — show that models of this kind are not only technically feasible but also generate additional revenue for industrial operators.

Transition from monitoring individual fixed setpoints to dynamically balancing the thermal load of the entire system. Predictive diagnostics prevent unplanned downtime through continuous monitoring of operating conditions.

Innovative systems integrated with real-time remote monitoring and advanced AI software can generate precise diagnoses and effectively prevent costly unplanned downtime or system-wide shutdowns.

Do not underestimate the rapid evolution of technology. Through the intelligent use of AI, a system can ensure consistently high-level performance (monitored 24 hours a day).

Traditional Temperature Control Units (TCUs) focus on maintaining a fixed setpoint temperature on the display, often ignoring the internal fluid dynamics of the mold channels. Frigel’s Circular Thermal Management changes the paradigm by utilizing integrated inverter-driven booster pumps that dynamically maximize flow turbulence. By pushing the local Reynolds number far beyond the laminar-to-turbulent transition threshold even in narrow 4 mm channels, the system optimizes the heat transfer coefficient (h). This continuous volumetric flow management ensures a constant cavity wall temperature differential (Delta T < 1 °C), eliminating internal polymer residual stresses, sink marks, and dimensional part orientation defects.

Yes, under the framework of the EED III Directive, compliance has transitioned from a sustainability choice into a strict legal requirement. Specifically, industrial facilities with an annual energy consumption exceeding 85 TJ are required to implement a certified Energy Management System (EnMS). Furthermore, for facilities or co-located data infrastructure exceeding 1 MW of thermal loads, waste heat recovery and continuous reporting of key performance indicators are mandatory. Our Circular Thermal Management architecture directly addresses this by integrating 3-level hydraulic recovery networks, transforming waste condensation heat into an on-site low-enthalpy utility (e.g., boiler feedwater preheating or CIP processes).

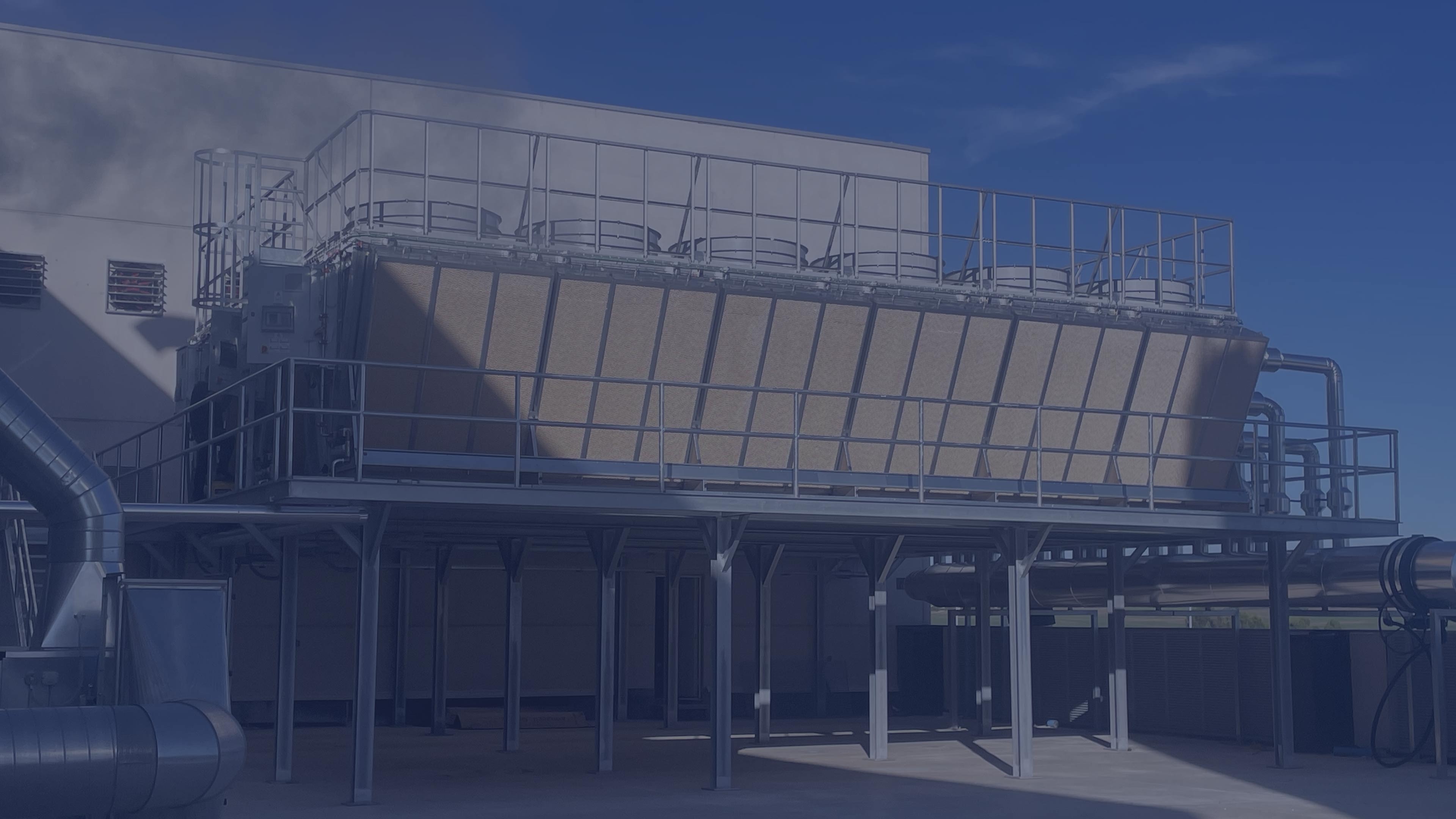

Industrial expansion in continental Europe, particularly within highly industrialized districts, is increasingly restricted by strict environmental limits on local water withdrawal and chemical bleeding permits. Traditional evaporative cooling towers consume massive volumes of fresh water due to latent heat evaporation. Frigel's patented Ecodry adiabatic dry coolers solve this constraint by operating completely dry for most of the year, relying on convection. Spray nozzles in the patented adiabatic chamber are activated automatically via smart algorithms only during extreme ambient peak temperatures, minimizing the overall water footprint by up to 95% and guaranteeing full operational compliance with residential and agricultural water-sharing regulations.

While Power Usage Effectiveness (PUE) is the standard metric used to benchmark hyperscale data center infrastructure efficiency, Frigel is pioneering the concept of "Industrial PUE" for the manufacturing sector. Conventional process cooling blindly tracks a static temperature target, leading to parallel chillers operating at sub-optimal partial loads or fighting against internal loop fouling. Smart Circular Thermal Management uses a distributed network of digital sensors to collect real-time pressure, flow rate, and thermal balance data. Advanced algorithmic optimization dynamically distributes the load across parallel refrigeration units. This prevents energy waste and maximizes automated free-cooling hours, driving down the overall SEC (Specific Energy Consumption) per kilogram of finished product.
